Bring industrial-grade reliability and wireless connectivity to your automation projects with the Waveshare Industrial ESP32-S3 Control Board. Powered by the advanced ESP32-S3 MCU, this rugged controller combines high-performance processing, Wi-Fi and Bluetooth communication, isolated RS485 and CAN interfaces, RTC functionality, and industrial protection features, all housed in a DIN-rail mount enclosure for easy deployment.
Key Features
✅ Powerful ESP32-S3 Processing
- Built around the ESP32-S3 microcontroller
- Integrated Xtensa® 32-bit LX7 dual-core processor
- Clock speeds up to 240MHz
- Delivers excellent performance for industrial control, IoT, automation, and edge computing applications
✅ Advanced Wireless Connectivity
- 2.4GHz Wi-Fi (802.11 b/g/n)
- Bluetooth 5.0 Low Energy (LE)
- External antenna design for improved signal strength and communication reliability
- Suitable for remote monitoring and industrial IoT deployments
✅ Industrial RS485 Communication
- Onboard isolated RS485 interface
- Easily connects to Modbus sensors, controllers, meters, and industrial devices
- Reliable long-distance communication in industrial environments
✅ Industrial CAN Bus Interface
- Integrated isolated CAN communication interface
- Supports connection to CAN-based equipment and automation networks
- Excellent for industrial control systems and vehicle applications
Enhanced Industrial Protection
✅ Digital Signal Isolation
- Built-in digital isolation technology
- Protects the ESP32-S3 controller from external signal interference
- Improves system stability and reliability
✅ Integrated Power Isolation
- Stable isolated power supply built directly into the board
- No need for an additional isolated-side power source
- Reduces wiring complexity and deployment costs
Flexible Development & Expansion
✅ Onboard Expansion Headers
- Convenient connection to sensors and external peripherals
- Supports custom industrial automation solutions
- Excellent platform for development and prototyping
✅ USB Type-C Interface
- Firmware downloading
- Device debugging
- Communication interface
- 5V power input
Wide Power Input Range
✅ Industrial Power Supply Support
- Terminal block power input
- Wide operating voltage range: 7V-36V DC
- Compatible with common industrial power systems
Built-In Real-Time Clock (RTC)
✅ Scheduled Automation Tasks
- Integrated RTC clock chip
- Supports time-based control and scheduling functions
- Useful for industrial monitoring, logging, and automation projects
Status Monitoring Indicators
✅ Easy System Diagnostics
- RS485 communication indicators
- CAN Bus status indicators
- Visual monitoring of communication activity
- Simplifies installation and troubleshooting

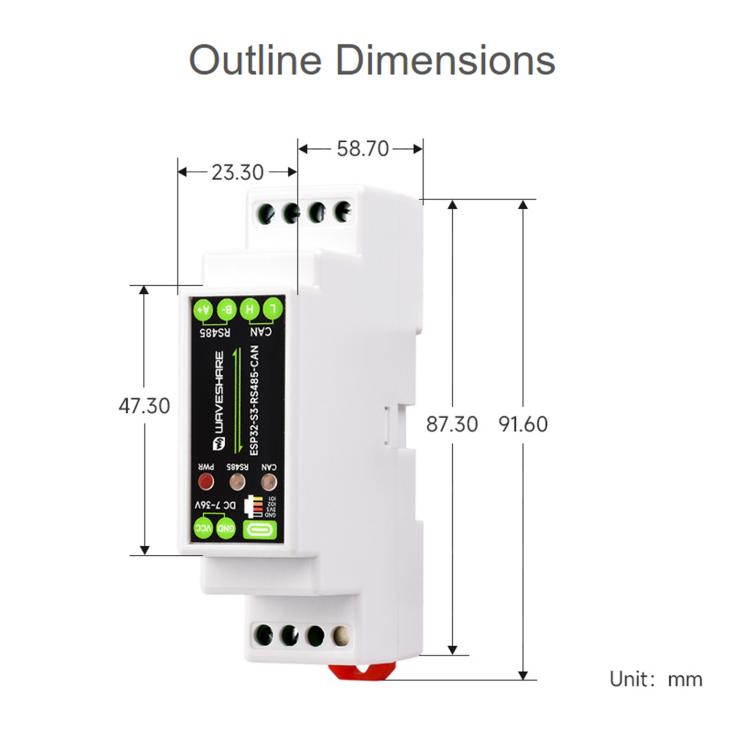

Industrial DIN-Rail Installation
✅ Protective Enclosure Included
- Durable industrial-grade housing
- Compatible with standard DIN rails
- Quick and secure installation in electrical cabinets and control panels
- Improved safety and protection for industrial environments
Technical Advantages
- ESP32-S3 Dual-Core 240MHz Processor
- Wi-Fi + Bluetooth 5.0 Connectivity
- External High-Gain Antenna Support
- Isolated RS485 Interface
- Isolated CAN Bus Interface
- Digital Signal Isolation
- Integrated Power Isolation
- RTC Real-Time Clock
- USB Type-C Programming & Debugging
- 7V-36V Wide Voltage Input
- DIN-Rail Mounted Enclosure
Ideal Applications
✔ Industrial Automation Systems
✔ Smart Factory Deployments
✔ IoT Gateways
✔ Modbus Monitoring Systems
✔ CAN Bus Networks
✔ Building Management Systems
✔ Data Acquisition Projects
✔ Energy Monitoring Solutions
✔ Remote Equipment Control
✔ Edge Computing Applications
Why Choose the Waveshare Industrial ESP32-S3?
- Industrial-grade design and protection
- Powerful dual-core ESP32-S3 platform
- Wide-voltage industrial power support
- Built-in RS485 and CAN communication
- Enhanced wireless performance via external antenna
- Integrated isolation for improved reliability
- Ready for DIN-rail cabinet installation
The Waveshare Industrial ESP32-S3 Control Board delivers professional-grade connectivity, industrial communication interfaces, robust electrical isolation, and flexible IoT capabilities, making it an ideal solution for modern automation, monitoring, and smart control systems.
